What Does a Gravity Spiral Chute Do?
A gravity spiral chute is a specialized piece of equipment used primarily in mineral processing and industrial separation. Its main function is to separate materials based on their density and size using gravity and centrifugal forces. By feeding a slurry of mixed particles into the top of the spiral chute, the device efficiently sorts heavier particles toward the inside of the spiral and lighter particles toward the outside, enabling effective separation without the need for complex machinery or chemicals.
This simple yet powerful mechanism allows industries to concentrate valuable minerals like zircon, monazite, rutile, coal, gold, iron ore, and more at a low operational cost and high capacity. The gravity spiral chute is especially valued for its ability to process low-grade ores and fine particles, making it an indispensable tool in modern mineral processing.
How Does a Gravity Spiral Chute Work?

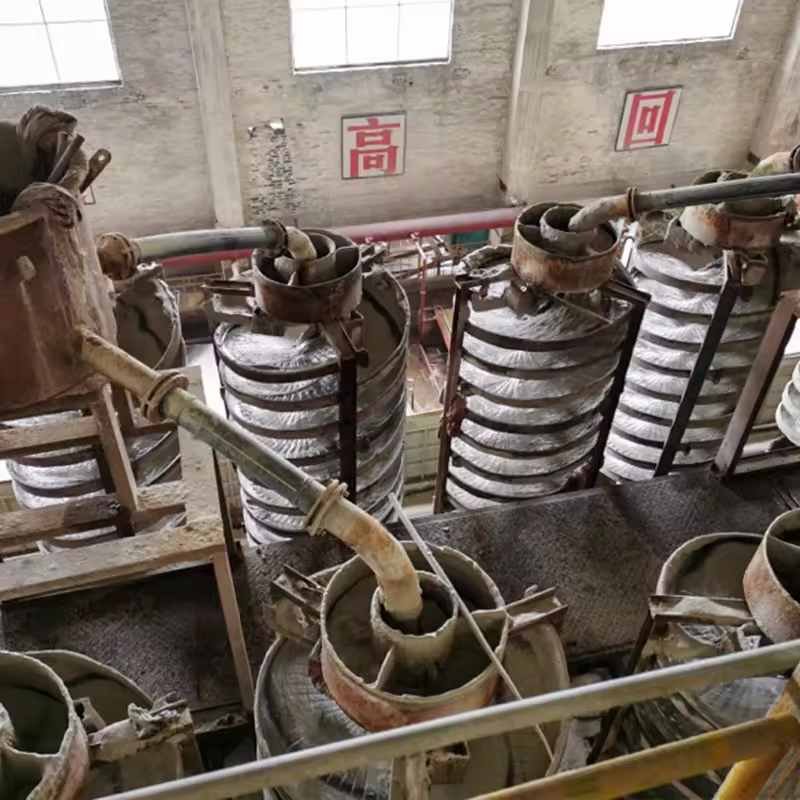

The working principle of a gravity spiral chute is based on the natural forces of gravity and centrifugal motion. Slurry containing mixed particles is pumped to the top of the spiral, where a feed distributor evenly spreads the material across multiple spirals. As the slurry flows downward through the spiral channel, the combination of gravity and the spiral’s curved design causes particles to stratify.
Heavier particles settle toward the inner part of the spiral due to their higher density and centrifugal force, while lighter particles are pushed outward with the water flow. This stratification results in an efficient separation of materials by size, shape, and density.
The design of the spiral, including its pitch and number of turns, is critical to optimizing separation efficiency. Typically, spirals handle particles ranging from 1 mm down to 0.0757 microns, making them versatile for various mineral and industrial applications.
Types of Gravity Spiral Chutes and Their Functions
There are several types of gravity spiral chutes designed for specific separation needs:
Single-start spirals: These have one continuous spiral and are commonly used for coarse particle separation.
Double and triple-start spirals: Featuring two or three intertwined spirals, these increase processing capacity and improve separation for finer particles.
Three-function gravity spiral chutes: These specialized spirals can perform multiple separation tasks simultaneously, such as concentrating, classifying, and dewatering.
Each type is tailored to different materials and operational requirements. For example, coal spirals are optimized for coarse coal separation with profiles designed to handle varying ash content, while mineral spirals focus on fine heavy minerals like iron ore, silica sand and chrome.
Applications and Benefits of Gravity Spiral Chutes
Gravity spiral chutes are widely used in:
Mineral sands processing: To separate valuable heavy minerals such as zircon, monazite, ilmenite, and rutile.
Coal beneficiation: Recovering fine coal particles efficiently.
Gold and iron ore concentration: Enhancing recovery rates with minimal operational complexity.
The benefits of using gravity spiral chutes include
Low operational cost: No need for chemicals or complex machinery.
High capacity: Multiple spirals on a single unit increase throughput.
Ease of maintenance: Modular design allows for quick repairs and retrofitting.
Environmental friendliness: Gravity separation avoids harmful reagents.
According to industry data, using gravity spiral concentrators can significantly reduce processing costs while maintaining high recovery rates, making them a trusted solution worldwide1.
Choosing the Right Gravity Spiral Chute for Your Needs
Selecting the appropriate gravity spiral chute depends on several factors:
Material characteristics: Particle size, density, and slurry concentration.
Separation goals: Whether you need coarse or fine separation, or multiple functions.
Capacity requirements: Volume of material to process per hour.
Plant layout and maintenance: Space constraints and ease of access for servicing.
Professional manufacturers like Multotec offer a range of spiral concentrators with modular frames and customizable features to suit specific applications. Their equipment supports everything from process audits and test work to turnkey spiral concentration plants, backed by global field service and spare parts availability.
For best results, it’s advisable to conduct pilot tests and consult with experts to match the spiral design to your ore characteristics and processing goals.
Conclusion: Maximizing Efficiency with Gravity Spiral Chutes
Gravity spiral chutes are a proven, cost-effective solution for mineral and industrial material separation. Their simple yet sophisticated design leverages natural forces to deliver high-capacity, low-cost concentration of valuable materials. By understanding how these devices work, the types available, and their applications, operators can optimize their processes and improve recovery rates significantly.
Choosing the right gravity spiral chute tailored to your material and operational needs ensures maximum efficiency, reduced downtime, and long-term reliability. With ongoing innovations and expert support, gravity spiral chutes continue to be a cornerstone technology in mineral processing worldwide.
