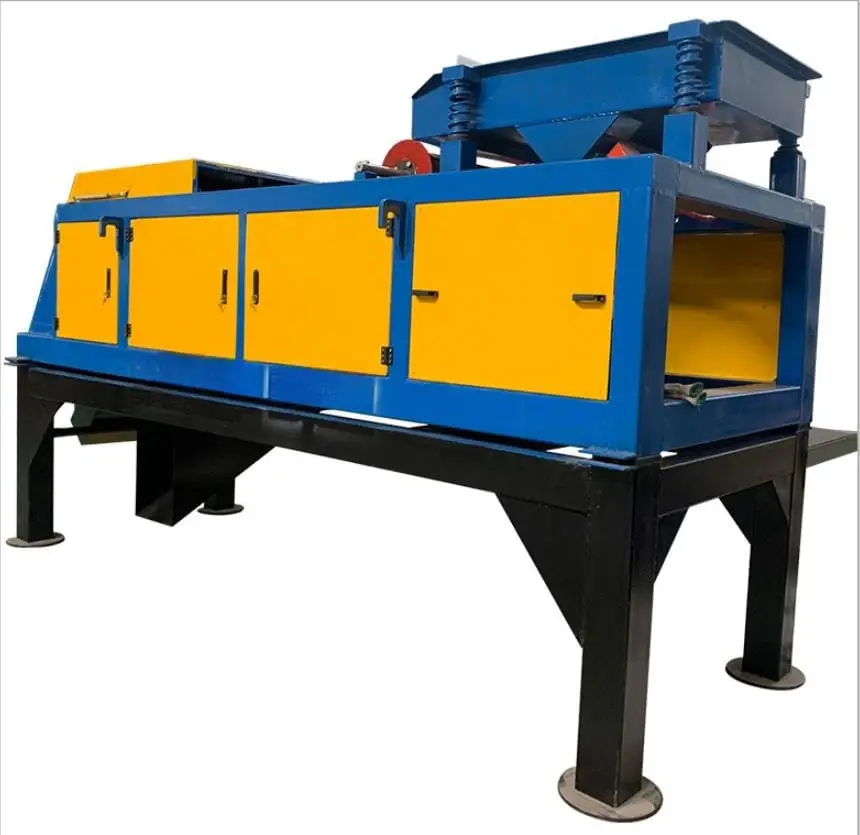

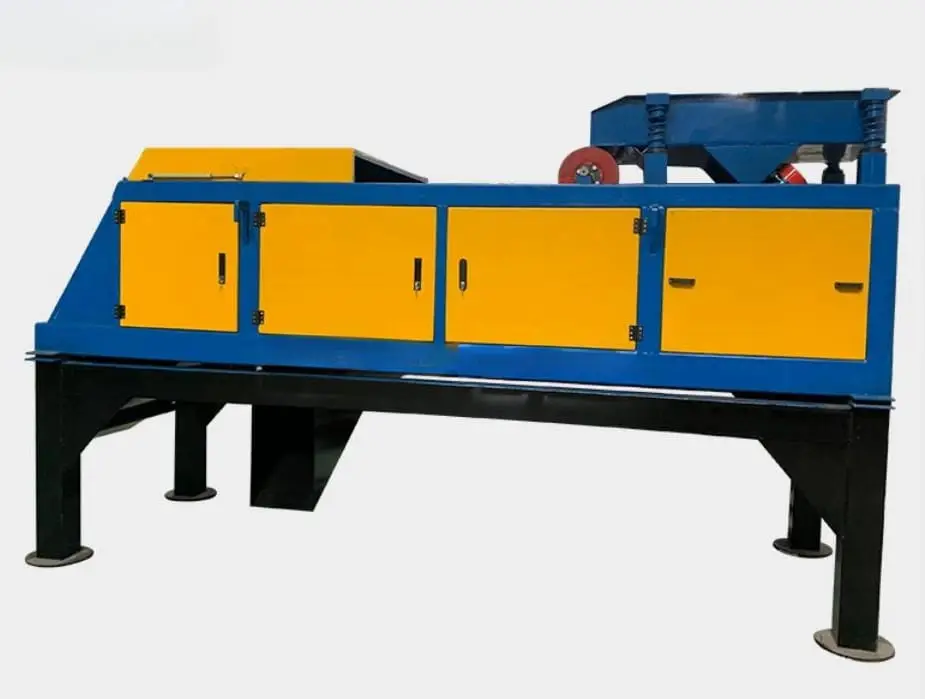

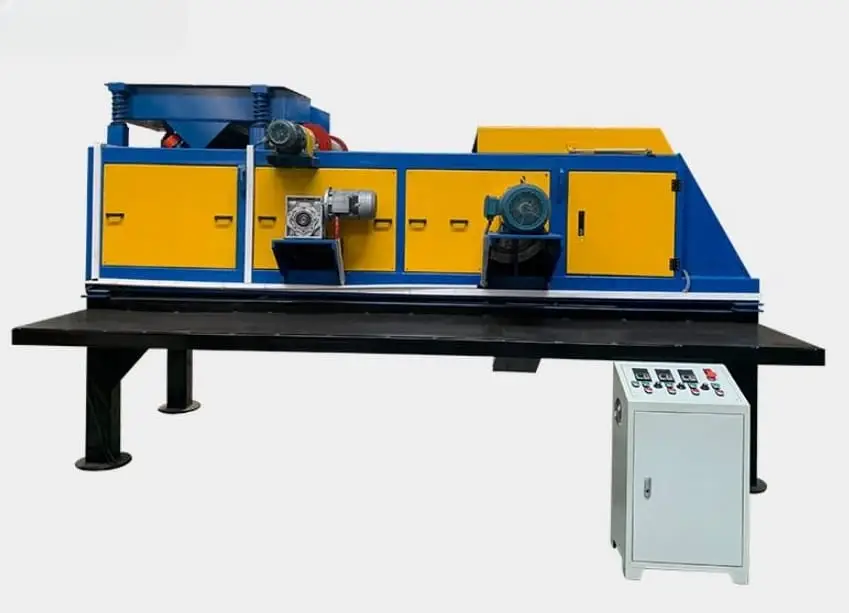

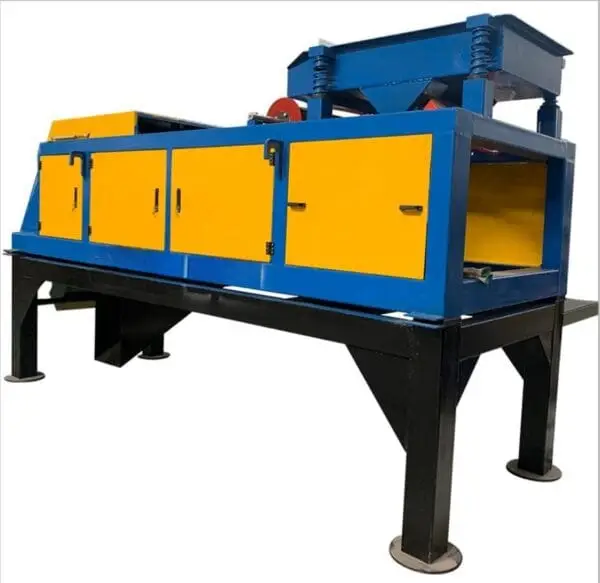

Eddy Current Separator for Aluminum and Copper sorting
Description
Eddy Current Sepatator for recycling
Applicatiton:
HTECS series eddy current separator, non-ferrous metal separator is mainly used for recycling of non-ferrous metal. Typical material is: wasted copper, aluminum, cable, aluminum stuff, wasted auto spare part, non-ferrous metal scrap, dross for printing, broken glass contains non-ferrous, electronic wastes, etc.
At present, the main application in the following material separation
1. From the city waste recycling aluminum cans
2. Separation aluminum cans and iron
3. The ash from the boiler in the separation of non-ferrous metal
4. From waste car slices sorting aluminum or copper pieces
5. From smelting aluminium recycling aluminum in blast furnace slag
6. In some production line is to separate the iron metal impurity (such as plastic recycling product line)
7. Waste refrigerator processing
8. Electronic waste treatment
Features:
1. With high efficiency ,stable working structure ,light frame.
2. With high adaptability, great processing capacity.
3. It is widely used in environmental-protection area, especially in the non-ferrite recycle field.
4. Convenient operation and run for a long time .

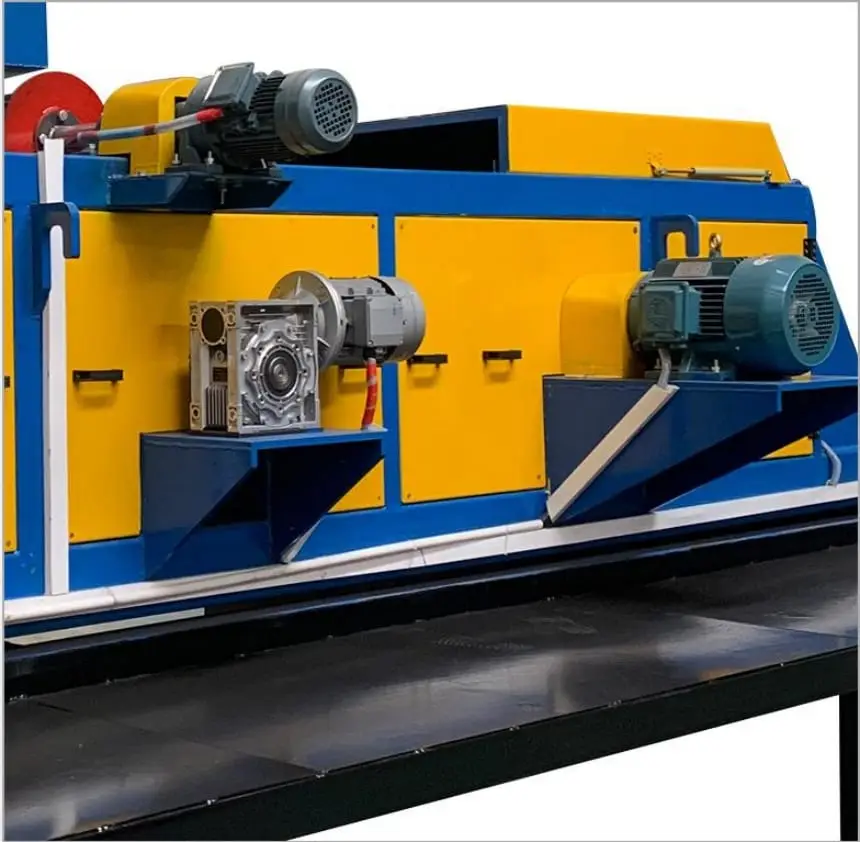

5. the speed of belt and the rotation speed of high frequency magnetic roller are both adjustable.
Main technical parameters :
| Model No. | Belt width (mm) | Magnetic field intensity (GS) | Drum diameter (mm) | Drum speed (r/min) | Belt speed (m/s) | Capacity (m³/h) | Drum drive power (kW) | Belt drive power (kW) | Weight (kg) |
| HTECS-3 | 300 | ≥3000 | 320 | 50~2880 | 0~2 | 2~3 | 4 | 1.1 | 1100 |
| HTECS-4 | 400 | 3~4 | 4 | 1.1 | 1200 | ||||
| HTECS-5 | 500 | 4~5 | 4 | 1.1 | 1400 | ||||
HTECS-6 | 600 | 5~6 | 4 | 1.1 | 1500 | ||||
| HTECS-6.5 | 650 | 5~7 | 4 | 1.1 | 1700 | ||||
| HTECS-7 | 700 | 6~8 | 5.5 | 1.1 | 1900 | ||||
| HTECS-7.5 | 750 | 7~9 | 5.5 | 1.1 | 2100 | ||||
| HTECS-8 | 800 | 8~10 | 7.5 | 1.1 | 2500 | ||||
| HTECS-10 | 1000 | 9~11 | 7.5 | 1.5 | 3100 | ||||
| HTECS-12 | 1200 | 10~12 | 11 | 2.2 | 3500 | ||||
| HTECS-14 | 1400 | 12~14 | 11 | 2.2 | 3900 | ||||
| HTECS-15 | 1500 | 13~15 | 11 | 2.2 | 4300 | ||||
| HTECS-20 | 2000 | 17~20 | 15 | 3 | 5200 |
Note:
Feed size: 5~120mm
Separation frequency: 0~60Hz
Magnetic Intensity on the drum Surface: more than :3500GS

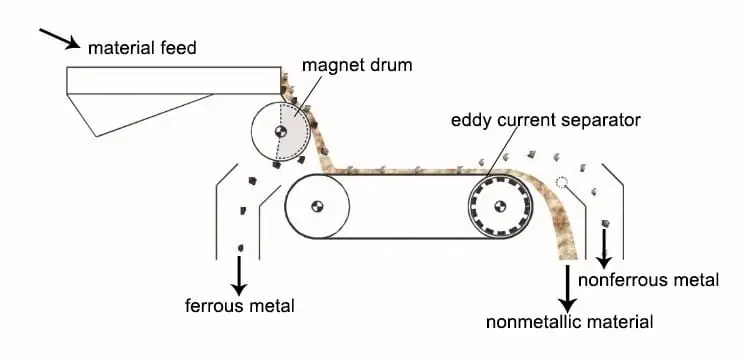

Working Principle:
Dear customer,
To choose the best appropriate model, we need to know the following information:
- The raw materials ?
- The materials’ size?
- The capacity requirements
- Other special requirements Contact us for more!
