6-S shaking table

Description

One of the key pieces of gravity concentration equipment is the 6-S shaking table. It is used extensively for more than just isolating rare metals like niobium, tantalum, tungsten, and others. The separation of gold, silver, columbium, titanium, barium, iron, chrome, manganese, zircon, lead, zinc, mercury, copper, aluminum, etc. is another common application for it. The effective recycling granularity scope of a shaking table is 2-0.22 millimeters.

Operational Concept

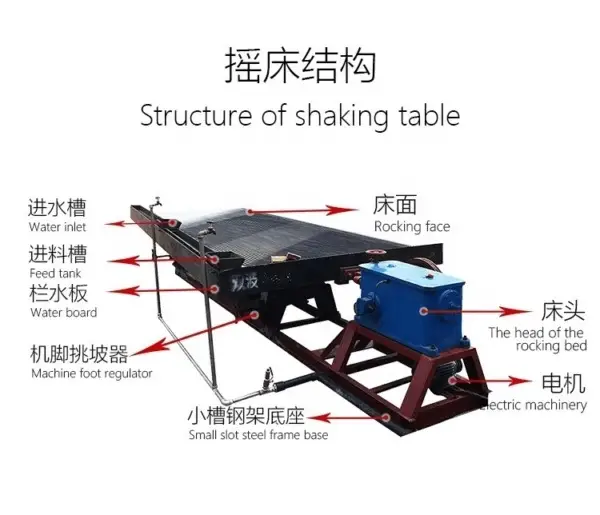

The tilt table with riffle is used for the shaking table’s mineral separation process. The minerals are transported to the bed’s superior angle by the feed launder, which also provides horizontal washing water from the feed water launder. The bed’s reciprocating asymmetrical movement produces friction force, inertia, gravity, and crosswise running water momentum, which cause minerals to stratify according to weight and size. These forces also cause minerals to migrate longitudinally along the bed and transversally along the tilt bed. As a result, the various minerals’ proportions and granularities fan out along the corresponding heading from A to B, discharged independently from the various concentrate side and tailing side sections, and then separated into concentrate, middling, and tailing.
