Introduction

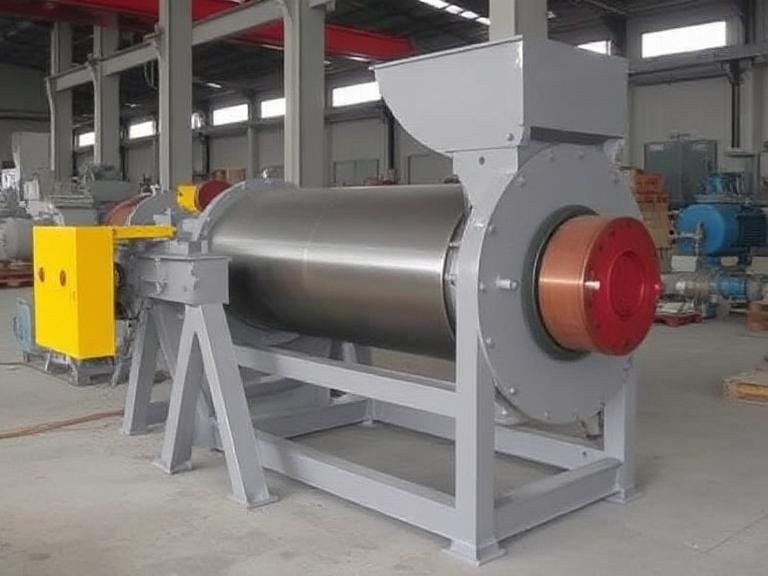

The magnetic drum separator is one of the most essential tools in modern industrial and mineral processing applications. It separates magnetic materials from non-magnetic substances, improving product purity and operational efficiency. Whether used in recycling plants, food processing, or mining operations, a magnetic drum separator ensures high precision, reliability, and long-term performance.

As industries strive for sustainability and cost-efficiency, the role of magnetic separation technology continues to grow. In this article, we’ll dive deep into what a magnetic drum separator is, how it works, and why it’s indispensable in modern manufacturing processes.

How a Magnetic Drum Separator Works

A magnetic drum separator uses powerful magnets to attract and remove ferrous contaminants from bulk materials. The rotating drum attracts magnetic particles while allowing non-magnetic materials to pass through. The process typically involves the following steps:

1. Material Feeding

Raw material is fed onto the drum surface, usually via a vibratory feeder or conveyor belt, ensuring an even distribution.

2. Magnetic Separation

As the drum rotates, the internal permanent or electromagnetic system attracts magnetic particles, which cling to the drum surface while non-magnetic material falls away.

3. Discharge

At a designated point, magnetic particles are released into a separate discharge chute once they move out of the magnetic field zone. This ensures precise separation with minimal contamination.

Types of Magnetic Drum Separators

There are various magnetic drum separator designs optimized for different industrial applications. Here are the most common types:

1. Permanent Magnetic Drum Separator

Uses permanent magnets to create a constant magnetic field. Ideal for dry materials and low-maintenance operations.

2. Electromagnetic Drum Separator

Employs an electromagnet that can be turned on or off, offering flexibility in controlling the separation process.

3. Wet Drum Magnetic Separator

Used for wet materials in mineral processing, particularly in iron ore beneficiation, where magnetic minerals need to be separated from slurries.

4. Double Drum Magnetic Separator

Incorporates two drums for higher throughput and increased magnetic recovery efficiency, suitable for high-volume industrial use.

Applications in Industry

Magnetic drum separators are used across a wide range of industries to ensure material purity and enhance production quality. Key sectors include:

• Mining and Mineral Processing
• Recycling Plants
• Food and Beverage Industry
• Ceramic and Glass Production
• Power Plants and Steel Manufacturing
• Pharmaceutical and Chemical Processing

1. Mining and Ore Processing

Used to recover valuable ferrous minerals from ore mixtures and remove impurities.

2. Recycling

Helps separate iron and steel from non-metallic materials in recycling centers, contributing to sustainability.

3. Food Industry

Ensures metal-free ingredients in food processing lines to maintain product safety and quality.

Benefits of Using Magnetic Drum Separators

• Improved material purity and quality.
• Reduced equipment wear and tear by removing ferrous contaminants.
• Enhanced operational efficiency and reduced downtime.
• Energy-efficient and eco-friendly separation process.
• Long-lasting and low-maintenance operation.

Summary Table: Key Features of Magnetic Drum Separators
