JF Series Low-temperature Super-conducting Magnetic Separator with Liquid Helium for Kaolin & Bauxite

Description

Key Technical Features

Superconducting Technology

• Advanced Low-temperature Superconducting System: Operates at cryogenic temperatures using liquid helium cooling for maximum magnetic field efficiency

• Continuous Reciprocating Operation: Designed for uninterrupted industrial production with automated cycling

• High-precision Magnetic Separation: Specialized for fine-particle mineral processing (0-100μm range)

Customizable Specifications

The JF Series offers fully customizable configurations to meet specific production requirements:

Core System Components

• High-gradient Media Type: Specialized steel wool matrix for maximum magnetic field gradient

• Slurry Flow Pattern: Horizontal flow through high-gradient media for optimal particle contact

• Total Installed Power: < 20kW (Highly energy-efficient design)

• Cooling System: Advanced liquid helium circulation for maintaining superconducting state

Technical Advantages

Unmatched Magnetic Performance

• Adjustable Background Field: 0-50,000 Gauss customizable magnetic intensity

• Superconducting Efficiency: Near-zero electrical resistance enables exceptionally strong magnetic fields with minimal power consumption

• Consistent Field Strength: Liquid helium cooling ensures stable, uniform magnetic field distribution

Operational Excellence

• Continuous Processing: Reciprocating design allows for uninterrupted operation with automatic material cycling

• High-capacity Design: Scalable models from 2.5 to 16 T/h processing capacity

• Low Energy Consumption: < 20kW total power requirement for maximum operational efficiency

• Minimal Maintenance: Advanced cryogenic system design reduces wear and extends service intervals

Application-specific Design

• Fine Particle Optimization: Specifically engineered for micron-sized mineral particles (typical range: 5-100μm)

• Horizontal Flow Configuration: Maximizes particle contact time with magnetic media

• Corrosion-resistant Construction: Suitable for harsh mineral processing environments

Industrial Applications

Primary Applications

• Kaolin Clay Purification: Removing iron, titanium, and other impurities to achieve high-brightness kaolin products

• Bauxite Processing: Upgrading bauxite quality by removing magnetic impurities for aluminum production

• Fine Non-metallic Mineral Processing: Various micron-sized mineral purification applications

Material Specifications

• Particle Size Range: Optimal for 5-100μm fine particles

• Material Types: Suitable for slurries with solid concentrations of 10-40%

• Temperature Range: Compatible with process temperatures up to 50°C

Why Choose JF Series Superconducting Magnetic Separator?

Superior Technical Performance

1. Highest Magnetic Field Intensity: Up to 50,000 Gauss background field for maximum impurity removal

2. Energy Efficiency: Superconducting technology reduces power consumption by up to 90% compared to conventional electromagnetic separators

3. Continuous Operation: Automated reciprocating system eliminates downtime for cleaning cycles

4. Precision Separation: Specifically designed for challenging fine-particle applications

Industrial Reliability

• Proven Technology: Field-tested in demanding mineral processing environments

• Scalable Design: Multiple size options to match production requirements

• Low Operating Costs: Minimal energy and maintenance requirements

• Custom Integration: Engineered to integrate seamlessly with existing processing lines

Quality Assurance

• Precision Engineering: Manufactured to strict quality standards

• Performance Guarantee: Each system tested to meet specified separation efficiency

• Technical Support: Comprehensive installation, training, and maintenance support

System Specifications

Physical Parameters

• Construction Materials: High-grade stainless steel and corrosion-resistant alloys

• Cooling System: Closed-cycle liquid helium refrigeration

• Control System: Advanced PLC automation with touch-screen interface

• Safety Features: Multiple redundancy systems for cryogenic safety

Performance Metrics

• Magnetic Field Uniformity: ±5% variation across separation chamber

• Separation Efficiency: 95-99% removal of magnetic impurities (application dependent)

• Recovery Rate: > 99% of non-magnetic product recovery

• Availability: > 95% operational uptime

Installation Requirements

• Floor Space: Varies by model (consult technical drawings)

• Utilities: Standard electrical connection, cooling water supply

• Ambient Conditions: Temperature controlled environment recommended

• Foundation: Reinforced concrete base required

Comparative Advantages

vs. Conventional Electromagnetic Separators

• Power Consumption: 80-90% reduction in energy requirements

• Magnetic Field Strength: 2-3 times higher maximum field intensity

• Heat Generation: Minimal heat output due to superconducting operation

• Footprint: Compact design with higher processing capacity per square meter

vs. Permanent Magnet Separators

• Adjustable Field: Variable magnetic intensity vs. fixed permanent magnet strength

• Temperature Stability: Consistent performance regardless of operating temperature

• Maintenance: No demagnetization issues over time

• Flexibility: Adaptable to varying feed materials and impurity levels

Industry Applications & Case Studies

Kaolin Processing Industry

• Brightness Improvement: Achieve ISO brightness levels of 88-92%

• Iron Reduction: Decrease Fe₂O₃ content to <0.5%

• Titanium Removal: Reduce TiO₂ to <0.1% for premium applications

• Throughput: Process 5-16 T/h of kaolin slurry depending on model

Bauxite Refining

• Quality Enhancement: Improve alumina content by removing magnetic impurities

• Silica Reduction: Selective removal of magnetic silica compounds

• Processing Efficiency: Handle challenging fine-particle bauxite feeds

• Scale: Industrial-scale processing up to 16 T/h dry ore equivalent

Technical Support & Services

Pre-installation Services

• Site Assessment: Technical evaluation of installation requirements

• Process Optimization: Analysis of existing flowsheet for optimal integration

• Custom Engineering: Tailored solutions for specific mineral characteristics

Post-installation Support

• Commissioning: On-site startup and performance verification

• Operator Training: Comprehensive training on operation and maintenance

• Maintenance Services: Scheduled maintenance and emergency support

• Spare Parts: Readily available critical components

Performance Monitoring

• Remote Diagnostics: Optional connectivity for performance tracking

• Regular Audits: Periodic performance evaluations and optimization

• Upgrade Services: Technology upgrades as new developments emerge

Environmental & Safety Considerations

Environmental Benefits

• Energy Efficiency: Significantly lower carbon footprint than conventional separators

• Chemical Reduction: Minimizes need for chemical purification agents

• Water Conservation: Efficient slurry processing with minimal water loss

• Waste Reduction: Concentrated impurity streams for potential recovery

Safety Features

• Cryogenic Safety: Multiple containment and monitoring systems for liquid helium

• Electrical Safety: Ground fault protection and isolation systems

• Operational Safety: Emergency stop systems and automated safety interlocks

• Material Safety: Non-toxic, environmentally friendly construction materials

Ordering Information & Customization

Standard Models Available

• JF-X-300: For pilot plants and small-scale production (≤2.5 T/h)

• JF-X-400: Medium-capacity processing (≤4.5 T/h)

• JF-X-500: Standard industrial scale (≤7 T/h)

• JF-X-600: High-capacity processing (≤10 T/h)

• JF-X-750: Maximum throughput applications (≤16 T/h)

Customization Options

• Magnetic Field Configuration: Custom field strength and gradient profiles

• Material Compatibility: Specialized construction for corrosive or abrasive feeds

• Automation Level: From basic to fully automated control systems

• Integration Packages: Complete solutions including pumps, tanks, and controls

Delivery & Installation

• Lead Time: 16-24 weeks depending on customization

• Packaging: Weatherproof export packaging

• Installation Support: Technical supervision available

• Performance Guarantee: 12-month comprehensive warranty

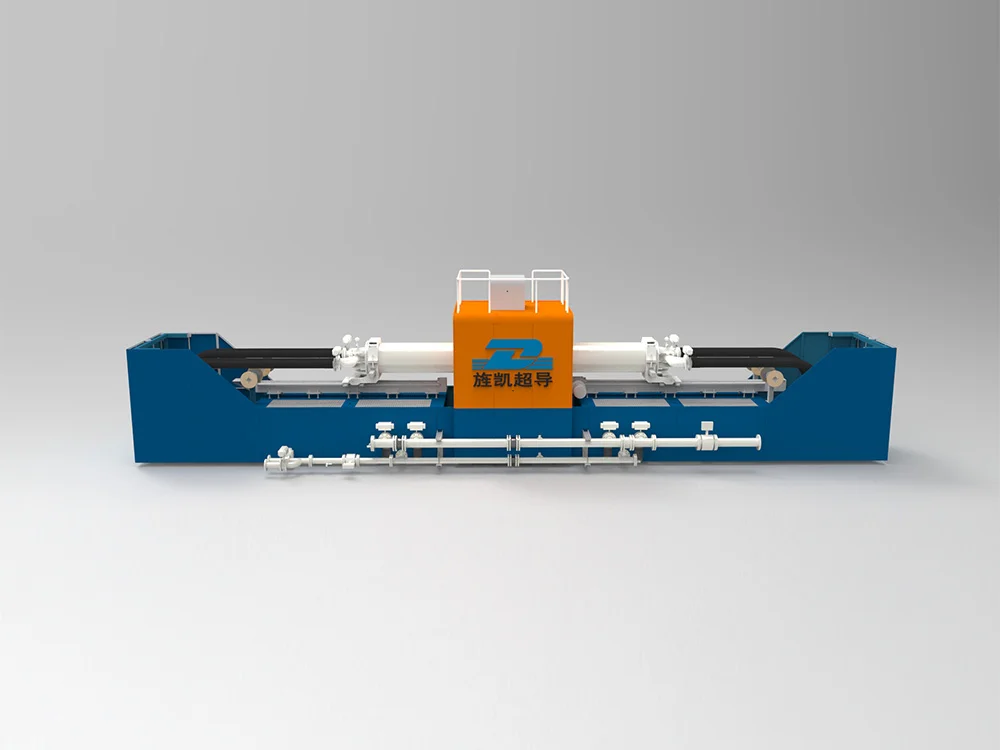

• JF Series Low-temperature Super-conducting Magnetic Separator with liquid helium for kaolin, bauxite – CAD drawing for the plant design
