Sand Washing Machine 100 TPH Long Life

Handling Capacity: From 1 up to 100 tons per hour
Available Models: Spiral design and wheel-based sand washing machines
Suitable Materials: Natural sand, crushed stone, gravel, manufactured sand, and various ores
Industry Applications: Widely used in metallurgy, mining and ore treatment, quarrying, stone crushing plants, infrastructure and road building, construction materials, and concrete cleaning projects
Support & Services: Tailored sand washing system design, on-site setup assistance, and complete project solutions

Category:

Description

Foshan ORO Mineral Co., Ltd. offers advanced sand washing machines designed for high efficiency, durability, and wide applications. With over a decade of experience in mineral processing and sand washing equipment, we provide reliable solutions for ore washing, concrete preparation, quarry operations, and construction industries.

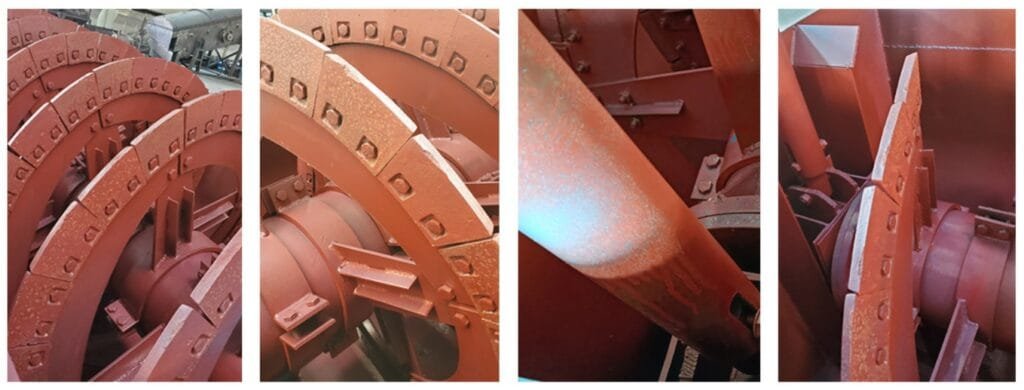

Sand Washing Machine (Spiral & Wheel Type)

Table of Contents

Application of Sand Washing Machine

The spiral classifier sand washing machine is known for its simple structure, reliable operation, and easy maintenance. It is widely used in multiple industries and processes, including:

  • Working with ball mills in mineral concentration to form closed-circuit operations and distribute ore sand
  • Classification of ore sand and fine mud in separation plants
  • Granularity classification of slurry, desliming, and dehydration during metal dressing processes
  • Desliming, dewatering, and other ore washing operations

Main Features of Sand Washing Machine

  • Heavy duty construction with long service life
  • Powerful self-contained spiral lifting device
  • Continuous spiral raking system
  • High classification efficiency with low maintenance requirements
  • Wide choice of weir height for different applications
  • Rigid tank and durable substructure design
  • Customizable tank design options
  • Applicable across a wide range of industries

About Foshan ORO Mineral Co., Ltd.

Foshan ORO Mineral Co., Ltd. is a large-scale intelligent manufacturer specializing in mineral processing, screening, and sand washing equipment. Since 2014, ORO Mineral has contributed to the fields of mineral screening, solid waste recycling, beneficiation, and washing solutions.

We continuously invest in technological innovation, research & development, and customer-focused services to deliver world-class mineral and sand processing equipment worldwide.

Why Choose ORO Sand Washing Machines?

  • Proven Experience: Over 10 years in mineral processing and equipment manufacturing
  • Advanced Technology: Constant upgrades and new equipment development
  • Reliable Partner: Trusted by global customers in mining, construction, and recycling

Product Parameters

ModelSpiral Diameter



Length

of pool

Rotation

Speed

(r/min)

Power (kw)Dimensions (mm)Weight

(T)

DriveLiftLWH
FG-3300300012-301.1—385049011400.7
FG-550045008-12.51.1—543068014801.6
FG-775055006-103—627098018202.7
FG-10100065005-85.5—7590124023804
FC-1084007.59600124026806
FG-12120065004-67.52.28180157031108.5
FC-1284007.52.2103701540392011
2FG-126500154.482302790311015.8
2FC-128400154.4103702790392017.6
FG-15150083004-67.52.2104101880408012.5
FC-15105007.52.2126701820489016.8
2FG-158300154.4104103390408022.1
2FC-1510500154.4126703370489030.7
FG-20200084003.6-5.511-153107902530449020.5
FC-201290011-153156102530534028.5
2FG-20840022-306110004600449035.5
2FC-201290022-306157604600564048.7
FG-24240091303.67153116502910497025.7
FC-241413018.54165802930719041
2FG-249130306127105430569045.8
2FC-2414130378177105430800067.9
2FG-303000125003.2408160206640635073
2FC-301430017091868084.8
